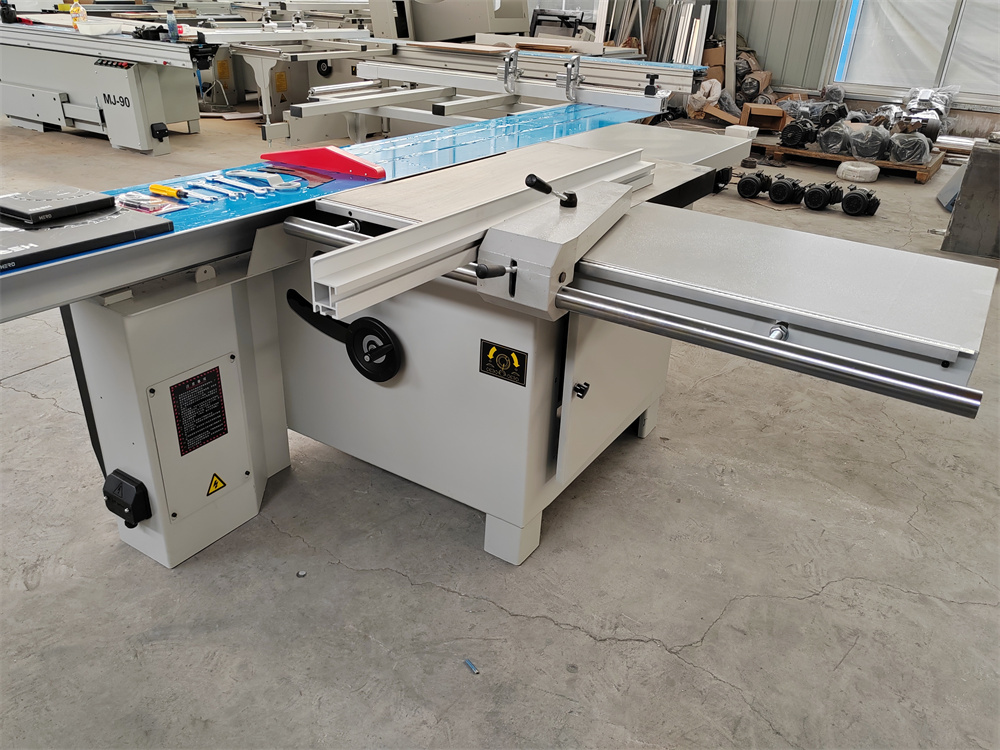

Large sliding table saw
Category:
Product Detail
45 degree 3.2-meter regular saw configuration parameters
Push table size: 3200 * 375mm
Maximum sawing length: 3200mm
Maximum sawing width: 1250mm
Maximum sawing thickness: 80mm
Slot saw blade speed: 7000-8000r/min
Main saw blade size: outer diameter 300mm/inner diameter 30mm
Slot saw blade size: outer diameter 120mm/inner diameter 20mm
Main saw shaft speed: 4000-6000r/min
Spindle diameter: 30mm
Motor power: main saw 4kw+marking saw 1.1kw
Saw blade angle: 90 degrees -45 degrees
Dimensions: 3200 * 1100 * 1200mm
Product Detail
45 degree 3.2-meter regular saw configuration parameters
Push table size: 3200 * 375mm
Maximum sawing length: 3200mm
Maximum sawing width: 1250mm
Maximum sawing thickness: 80mm
Slot saw blade speed: 7000-8000r/min
Main saw blade size: outer diameter 300mm/inner diameter 30mm
Slot saw blade size: outer diameter 120mm/inner diameter 20mm
Main saw shaft speed: 4000-6000r/min
Spindle diameter: 30mm
Motor power: main saw 4kw+marking saw 1.1kw
Saw blade angle: 90 degrees -45 degrees
Dimensions: 3200 * 1100 * 1200mm
